Six Decades of Reliability

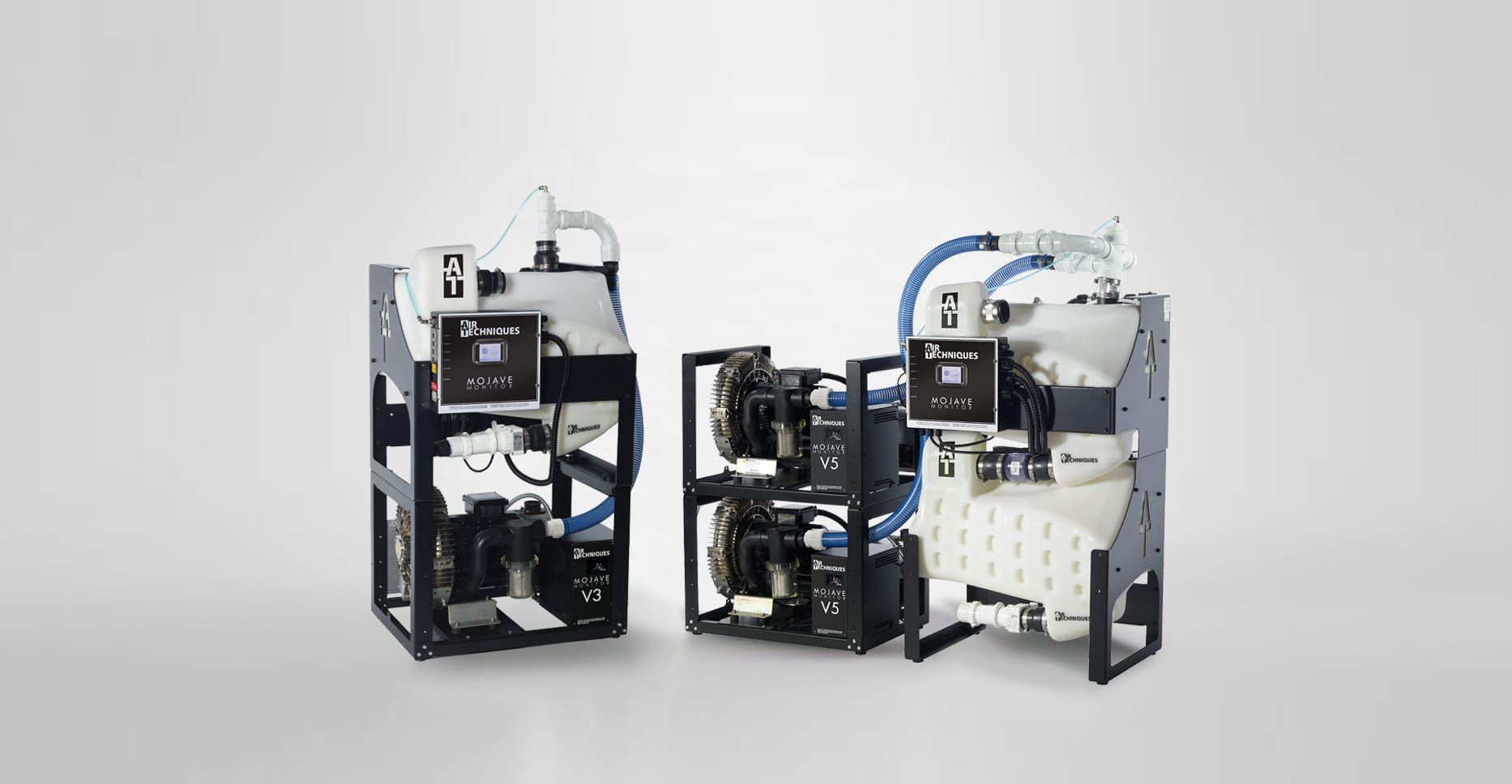

Mojave Monitor

Air Techniques has been the leading manufacturer of dental vacuum systems in North America for over six decades. The Mojave Monitor represents the next generation of dental dry vacuum systems designed to accommodate the needs of any dental office. It offers one of the highest suction powers of any dry vacuum system today, providing high performance, efficiency, and low operational costs.

Sound-Reducing Impeller Design.

Essential Elements For A Longer Life

• 3-phase motor generates higher torque, less heat, and extended heat-resistant motor bearings.
• All wetted metal parts are nickel-plated or stainless steel and aluminum high-performance air-exhaust heat exchanger.
• Tank drains evacuate when the pumps are turned off or the internal float switch is triggered.
• Optional water connection to take advantage of the Auto Tank Washout Cycle and with a Continuum Tank, one tank drains as the other tank fills.
• Rugged metal chassis securely mounts all components.
• Stackable with pump chassis for a fast and easy installation.
• Smart MMC-M controller ensures optimal performance based on vacuum demand.

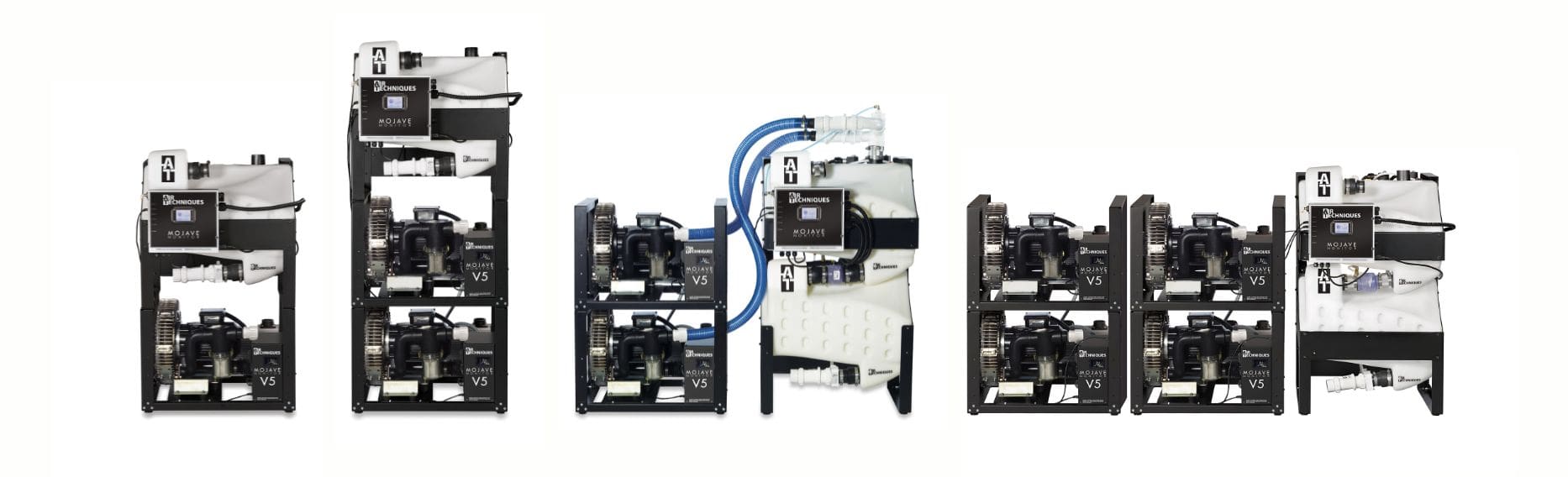

Modular Configurations.

For the Smallest of Practices to the Largest Of Clinics

Mojave Monitor is designed with high performance, high efficiency and low operational costs. Our V3M, V5M and V7M units are perfect for offices with just 3-10 simultaneous users. Choose between the economics of a single pump, or gain peace-ofmind with added redundancy from a dual-pump system. A small footprint enables easy installation in almost any facility. Big performance ensures the demands of every user are met. The Mojave Monitor V15 series is designed for large practices, clinics and dental schools. A single pump can handle up to 15 simultaneous users and the system is fully expandable up to four parallel units supporting 60 simultaneous users.

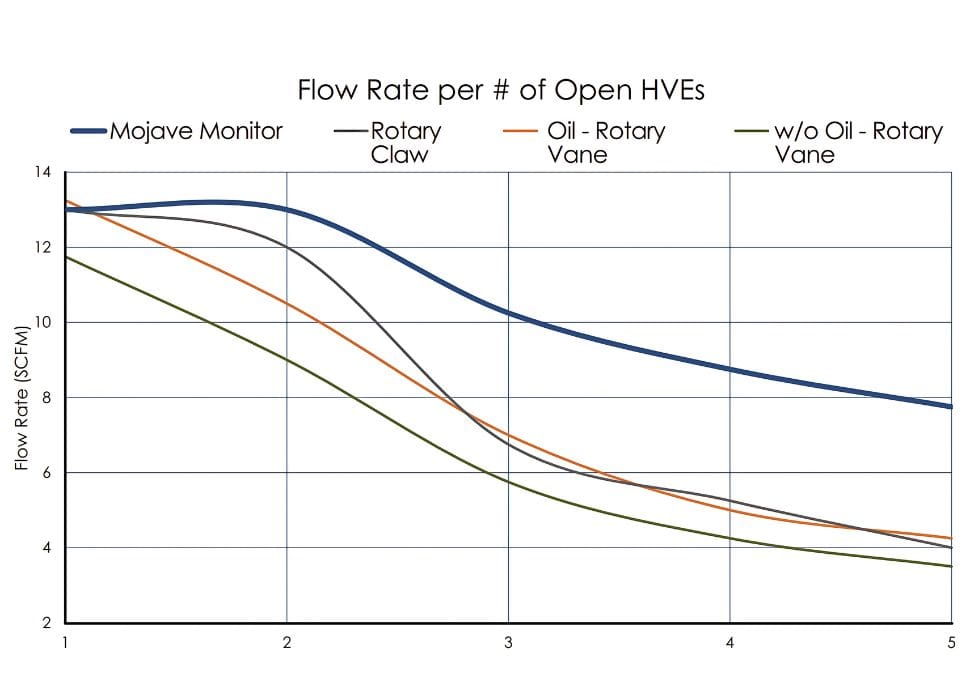

• Highest flow performance vacuum.
• Dramatically reduces power consumption.
• Virtually eliminates water use.
• Easy installation, maintenance and expansion.

Two Systems, One Footprint

Dual Mojave Monitor LT

Dual Mojave Monitor LT units deliver added suction power and redundancy—without requiring additional space in the utility room.

Protect the Pump. Protect the Practice.

Easy Maintenance

Mojave Monitor has been designed to make maintenance easy with no filters to replace or traps to drain. CleanStream is the only cleaner we recommend to break down and eliminate debris build-up that occurs in vacuum lines.
